Digital RGB LED Strip
Specification
| Model | HS-B01/WS2815 | WS2812 |
| Voltage / Power | 5V DC, 12V DC |
| LED Qty | 30. 60 . 72 . 144 LED /m |
| Color | RGB |
| CRI | > 85 |
| Dimension | 5000mm * 10mm /12mm ( L * W ) |
| Warranty | 3 Years warranty. MOQ 500 Meters |
| Price |
US $ *
Promotion
|
ART-NET MADRIX LED Strip
WS2815 Digital LED Strip, Can control by ART-NET LED Controller / Madrix . 30-144LEDs /m

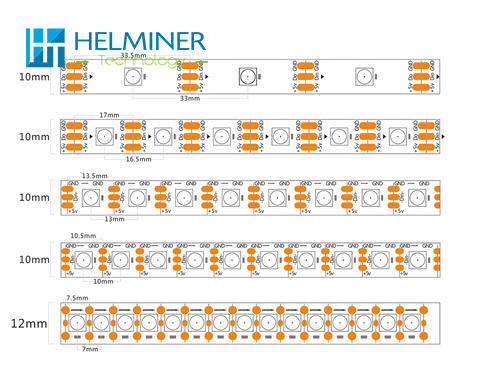

Product Dimension

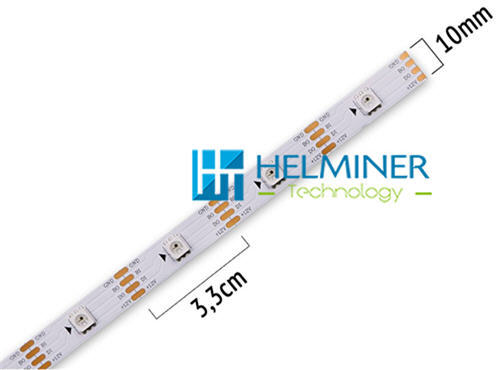

12v 30led 5.4w/m
WS2815 Digital LED Strip

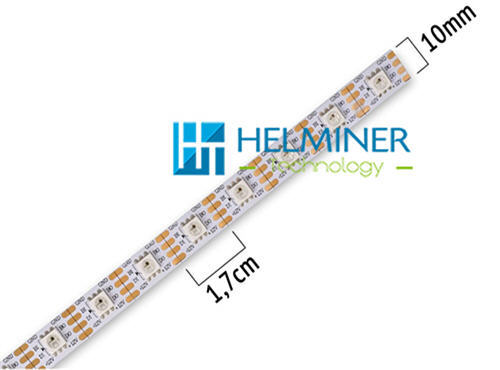

12v 60led 11w/m
WS2815 Digital LED Strip

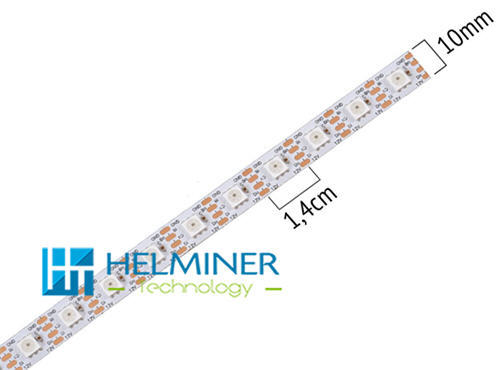

12v 72led 13w/m
WS2815 Digital LED Strip

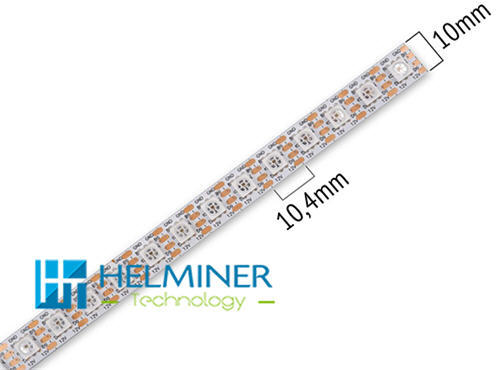

12v 96led 17.3w/m
WS2815 Digital LED Strip

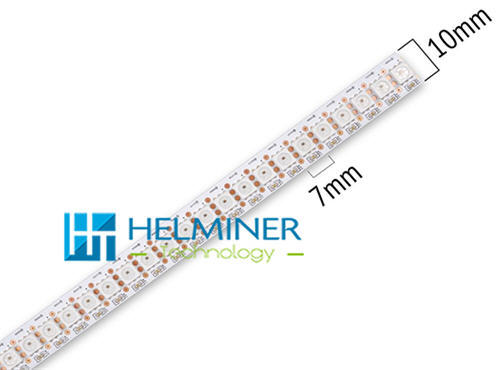

12v 144led 26w/m
WS2815 Digital LED Strip
Specifications
TECHNICAL INFORMATION
- Pixel LED strips with a 12V supply voltage are particularly suitable for larger installations over several meters. While normal pixel LED strips with 5V require a new voltage supply every 2m at the latest due to the intense voltage drop, with 12V strips 5m can also be achieved without a new supply.

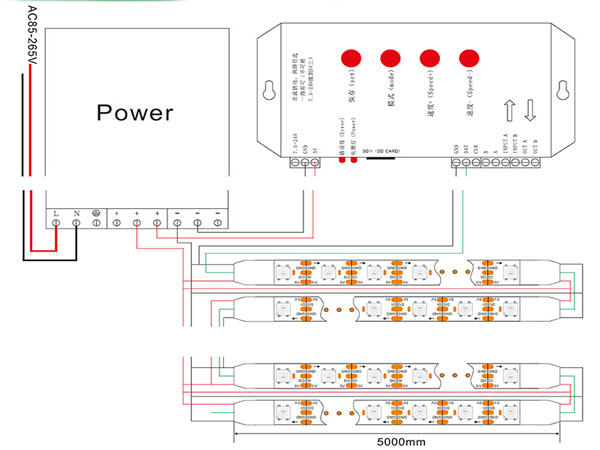

How to use Digital LED Strip
- In contrast to other 12V pixel solutions, with the WS2815 each LED is also a separately controllable pixel. This means that narrow resolutions of, for example, 30, 60, 72, 96 or even 144 pixels/m can be achieved.
- Another advantage of the WS2815 is that the data line is routed twice. This leads to significantly increased reliability. If one pixel fails, the subsequent pixels remain unaffected. Furthermore, the WS2815 offer a comparatively high PWM frequency of 1,200Hz, which reduces flickering effects.
- WS2815 are compatible with the widely used WS2811 protocol (also WS2812) and can therefore be controlled with a large number of pixel controllers. For very large installations, there are corresponding ArtNet pixel controllers with up to 16 or even 32 DMX universes.
There have various control options for our CCT lights. so that you can control them through a remote controller or a wireless app on your mobile device.
